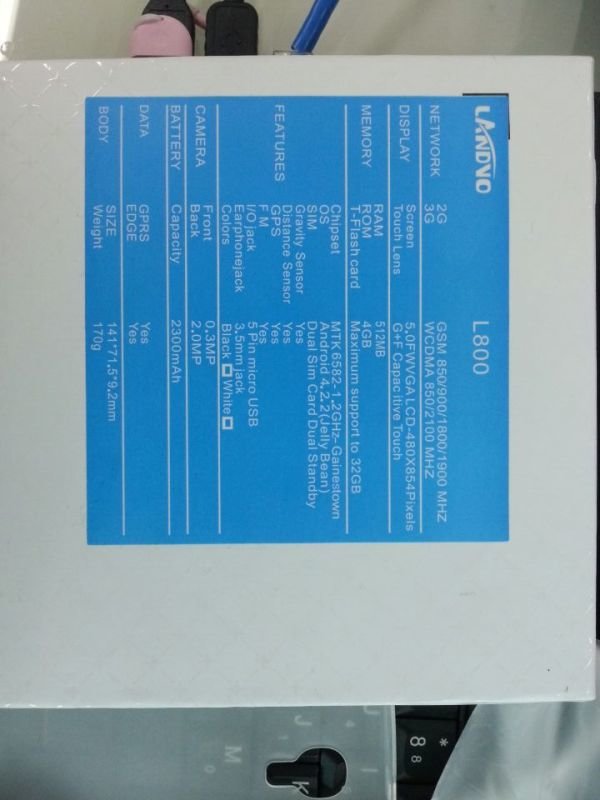

ALPS L800
SYSTEM (Android 4.2.2)
Model: L800
Manufacturer: alps
Device: 111w_v82_ht_fwvga
Product: 111w_v82_ht_fwvga
Brand: alps
Android Version: 4.2.2 (Jelly Bean)
API Level: 17
Build ID: JDQ39
Fingerprint: alps/111w_v82_ht_fwvga/111w_v82_ht_fwvga:4.2.2/JDQ39/1389579407:user/test-keys
DISPLAY (854x480)
Size: 854x480
Refresh Rate: 58,96 Hz
Default Orientation: Portrait
Physical Size: 4,08" (10,37 cm)
Logical Size: Normal
Density: 240 dpi (High)
Pixels Per Inch: X: 240; Y: 240
PROCESSOR (ARMv7)
Processor: ARMv7 Processor rev 3 (v7l)
Cores: 4
Max Frequency: 1300 Mhz
Instruction Sets: armeabi-v7a, armeabi
SIMD Instructions: NEON
MEMORY (465 MB)
System RAM: 465 MB
JVM Max Memory: 128 MB
Internal Storage: 1008 MB
External Storage: 7381 MB (Removable)
BACK CAMERA (8 megapixel)
Afeng Max Focus Step: 0
Afeng Min Focus Step: 0
Aflamp Mode: Off
Aflamp Mode Values: Off, On
Antibanding: Off
Antibanding Values: Off, 50hz, 60hz
Auto Exposure Lock Supported: False
Auto Whitebalance Lock Supported: False
Brightness_value: 0
Burst Num: 1
Cap Mode: Normal
Cap Mode Values: Normal, Face_beauty, Continuousshot
Capfname: /sdcard/DCIM/cap00
Effect: None
Effect Values: None, Mono, Negative, Sepia, Sepiablue
Eng Flash Duty Max: 31
Eng Flash Duty Min: 0
Eng Flash Duty Value: 1
Exposure Compensation: 0
Exposure Compensation Step: 1.0
Fb Sharp: 0
Fb Sharp Max: 4
Fb Sharp Min: 4
Fb Skin Color: 0
Fb Skin Color Max: 4
Fb Skin Color Min: 4
Fb Smooth Level: 0
Fb Smooth Level Max: 4
Fb Smooth Level Min: 4
Flash Mode: Off
Flash Mode Values: Off, On, Red Eye, Torch
Focal Length: 3.5
Focus Distances: 0.95, 1.9, Infinity
Focus Mode: Auto
Focus Mode Values: Auto, Infinity, Continuous Picture, Continuous Video
Horizontal View Angle: 54
Iso Speed: Auto
Iso Speed Values: Auto
Jpeg Quality: 100
Jpeg Thumbnail Height: 128
Jpeg Thumbnail Quality: 100
Jpeg Thumbnail Size Values: 0x0, 160x128, 320x240
Jpeg Thumbnail Width: 160
Max Exposure Compensation: 1
Max Num Detected Faces Hw: 15
Max Num Detected Faces Sw: 0
Max Num Focus Areas: 0
Max Num Metering Areas: 0
Max Zoom: 10
Min Exposure Compensation: 1
Mtk Cam Mode: 0
Orientation: 90
Picture Format: Jpeg
Picture Format Values: Jpeg
Picture Size: 2560x1920
Picture Size Values: 320x240, 640x480, 1024x768, 1280x720, 1280x768, 1280x960, 1600x1200, 2048x1536, 2560x1440, 2560x1920, 3264x2448, 3328x1872
Preferred Preview Size For Video: 1280x720
Preview Format: Yuv420sp
Preview Format Values: Yuv420sp, Yuv420p, Yuv420i Yyuvyy 3plane
Preview Fps Range: 5000, 60000
Preview Fps Range Values: (5000, 60000)
Preview Frame Rate: 30
Preview Frame Rate Values: 10, 15, 30
Preview Size: 640x480
Preview Size Values: 176x144, 320x240, 352x288, 480x320, 480x368, 640x480, 720x480, 800x480, 800x600, 864x480, 960x540, 1280x720
Rotation: 0
Scene Mode: Auto
Scene Mode Values: Auto, Night
Sensor Type: 255
Smooth Zoom Supported: True
Vertical View Angle: 49
Video Frame Format: Yuv420p
Video Size: 640x480
Video Size Values: 176x144, 480x320, 640x480, 864x480, 1280x720, 1920x1080
Video Snapshot Supported: True
Video Stabilization: False
Video Stabilization Supported: True
Whitebalance: Auto
Whitebalance Values: Auto, Incandescent, Daylight, Cloudy Daylight, Fluorescent, Tungsten
Zoom: 0
Zoom Ratios: 100, 114, 132, 151, 174, 200, 229, 263, 303, 348, 400
Zoom Supported: True
Zsd Mode: Off
Zsd Mode Values: Off
FRONT CAMERA (4,9 megapixel)
Afeng Max Focus Step: 0
Afeng Min Focus Step: 0
Antibanding: Off
Antibanding Values: Off, 50hz, 60hz
Auto Exposure Lock Supported: False
Auto Whitebalance Lock Supported: False
Brightness_value: 0
Burst Num: 1
Cap Mode: Normal
Cap Mode Values: Normal, Face_beauty, Continuousshot
Capfname: /sdcard/DCIM/cap00
Effect: None
Effect Values: None, Mono, Negative, Sepia, Sepiablue
Eng Flash Duty Max: 31
Eng Flash Duty Min: 0
Eng Flash Duty Value: 1
Exposure Compensation: 0
Exposure Compensation Step: 1.0
Fb Sharp: 0
Fb Sharp Max: 4
Fb Sharp Min: 4
Fb Skin Color: 0
Fb Skin Color Max: 4
Fb Skin Color Min: 4
Fb Smooth Level: 0
Fb Smooth Level Max: 4
Fb Smooth Level Min: 4
Flash Mode: Off
Flash Mode Values: Off
Focal Length: 3.5
Focus Distances: 0.95, 1.9, Infinity
Focus Mode: Auto
Focus Mode Values: Auto, Infinity, Continuous Picture, Continuous Video
Horizontal View Angle: 60
Iso Speed: Auto
Iso Speed Values: Auto
Jpeg Quality: 100
Jpeg Thumbnail Height: 128
Jpeg Thumbnail Quality: 100
Jpeg Thumbnail Size Values: 0x0, 160x128, 320x240
Jpeg Thumbnail Width: 160
Max Exposure Compensation: 1
Max Num Detected Faces Hw: 15
Max Num Detected Faces Sw: 0
Max Num Focus Areas: 0
Max Num Metering Areas: 0
Max Zoom: 10
Min Exposure Compensation: 1
Mtk Cam Mode: 0
Orientation: 270
Picture Format: Jpeg
Picture Format Values: Jpeg
Picture Size: 2560x1920
Picture Size Values: 320x240, 640x480, 1024x768, 1280x720, 1280x768, 1280x960, 1600x1200, 2048x1536, 2560x1440, 2560x1920
Preferred Preview Size For Video: 1280x720
Preview Format: Yuv420sp
Preview Format Values: Yuv420sp, Yuv420p, Yuv420i Yyuvyy 3plane
Preview Fps Range: 5000, 60000
Preview Fps Range Values: (5000, 60000)
Preview Frame Rate: 30
Preview Frame Rate Values: 10, 15, 30
Preview Size: 640x480
Preview Size Values: 176x144, 320x240, 352x288, 480x320, 480x368, 640x480, 720x480, 800x480, 800x600, 864x480, 960x540, 1280x720
Rotation: 0
Scene Mode: Auto
Scene Mode Values: Auto, Night
Sensor Type: 255
Smooth Zoom Supported: True
Vertical View Angle: 40
Video Frame Format: Yuv420p
Video Size: 640x480
Video Size Values: 176x144, 480x320, 640x480, 864x480, 1280x720, 1920x1080
Video Snapshot Supported: True
Video Stabilization: False
Video Stabilization Supported: True
Whitebalance: Auto
Whitebalance Values: Auto, Incandescent, Daylight, Cloudy Daylight, Fluorescent, Tungsten
Zoom: 0
Zoom Ratios: 100, 114, 132, 151, 174, 200, 229, 263, 303, 348, 400
Zoom Supported: True
Zsd Mode: Off
Zsd Mode Values: Off
OPENGL 1.1 (Mali-400 MP)
GENERAL
Renderer: Mali-400 MP
Version: OpenGL ES-CM 1.1
Vendor: ARM
LIMITS
Texture Size: 4096x4096
Texture Units: 8
Viewport Size: 4096x4096
Modelview Stack Depth: 32
Projection Stack Depth: 32
Texture Stack Depth: 32
Lights: 8
COMPRESSED TEXTURE FORMATS
ETC1, Paletted
EXTENSIONS
GL_EXT_debug_marker GL_OES_byte_coordinates GL_OES_fixed_point GL_OES_single_precision GL_OES_matrix_get GL_OES_read_format GL_OES_compressed_paletted_texture GL_OES_point_size_array GL_OES_point_sprite GL_OES_texture_npot GL_OES_query_matrix GL_OES_matrix_palette GL_OES_extended_matrix_palette GL_OES_compressed_ETC1_RGB8_texture GL_OES_EGL_image GL_OES_draw_texture GL_OES_depth_texture GL_OES_packed_depth_stencil GL_EXT_texture_format_BGRA8888 GL_OES_framebuffer_object GL_OES_stencil8 GL_OES_depth24 GL_ARM_rgba8 GL_OES_EGL_image_external GL_OES_EGL_sync GL_OES_rgb8_rgba8 GL_EXT_multisampled_render_to_texture GL_OES_texture_cube_map GL_EXT_discard_framebuffer GL_EXT_robustness GL_OES_depth_texture_cube_map
OPENGL 2.0 (Mali-400 MP)
GENERAL
Renderer: Mali-400 MP
Version: OpenGL ES 2.0
Vendor: ARM
GLSL Version: OpenGL ES GLSL ES 1.00
LIMITS
Texture Size: 4096x4096
Texture Units: 8
Vertex Textures: 0
Combined Textures: 8
Viewport Size: 4096x4096
Renderbuffer Size: 4096x4096
Cubemap Size: 4096x4096
Vertex Attributes: 16
Vertex Uniforms: 256
Varying Vectors: 12
Fragment Uniforms: 256
VERTEX NUMERIC PRECISION
Int: [-2^24, 2^24]
Float: [-2^127, 2^127], 2^-23
FRAGMENT NUMERIC PRECISION
Low Int: [-2^11, 2^11]
Medium Int: [-2^11, 2^11]
High Int: Not available
Low Float: [-2^15, 2^15], 2^-10
Medium Float: [-2^15, 2^15], 2^-10
High Float: Not available
COMPRESSED TEXTURE FORMATS
ETC1
EXTENSIONS
GL_EXT_debug_marker GL_OES_texture_npot GL_OES_compressed_ETC1_RGB8_texture GL_OES_standard_derivatives GL_OES_EGL_image GL_OES_depth24 GL_ARM_rgba8 GL_ARM_mali_shader_binary GL_OES_depth_texture GL_OES_packed_depth_stencil GL_EXT_texture_format_BGRA8888 GL_EXT_blend_minmax GL_OES_EGL_image_external GL_OES_EGL_sync GL_OES_rgb8_rgba8 GL_EXT_multisampled_render_to_texture GL_EXT_discard_framebuffer GL_OES_get_program_binary GL_ARM_mali_program_binary GL_EXT_shader_texture_lod GL_EXT_robustness GL_OES_depth_texture_cube_map
GRAPHIC MODES (RGBA 32bit)
RGB 16bit (565)
RGB 16bit (565), Depth 24bit, Stencil 8bit
RGB 16bit (565), Depth 24bit, Stencil 8bit, Samples x4
RGB 16bit (565), Depth 24bit, Stencil 8bit, Samples x16, Non-Conformant
RGBA 16bit (5551), Depth 24bit, Stencil 8bit
RGBA 16bit (5551), Depth 24bit, Stencil 8bit, Samples x4
RGBA 16bit (5551), Depth 24bit, Stencil 8bit, Samples x16, Non-Conformant
RGBA 16bit (4444), Depth 24bit, Stencil 8bit
RGBA 16bit (4444), Depth 24bit, Stencil 8bit, Samples x4
RGBA 16bit (4444), Depth 24bit, Stencil 8bit, Samples x16, Non-Conformant
RGB 32bit (888)
RGB 32bit (888), Depth 24bit
RGB 32bit (888), Depth 24bit, Stencil 8bit
RGBA 32bit (8888)
RGBA 32bit (8888), Depth 24bit, Stencil 8bit
RGBA 32bit (8888), Depth 24bit, Stencil 8bit
RGBA 32bit (8888), Depth 24bit, Stencil 8bit
RGBA 32bit (8888), Depth 24bit, Stencil 8bit, Samples x4
RGBA 32bit (8888), Depth 24bit, Stencil 8bit, Samples x16, Non-Conformant
SENSORS (3)
ACCELEROMETER
Vendor: MTK
Range: 32.0 m/s²
Resolution: 0.00390625 m/s²
Power: 0.13 mA
PROXIMITY
Vendor: MTK
Range: 1.0 cm
Resolution: 1.0 cm
Power: 0.13 mA
LIGHT
Vendor: MTK
Range: 10240.0 lx
Resolution: 1.0 lx
Power: 0.13 mA
CODECS (33)
OMX.MTK.AUDIO.DECODER.MP3
MEDIA TYPE: AUDIO/MPEG
OMX.MTK.AUDIO.DECODER.AMR.NB
MEDIA TYPE: AUDIO/3GPP
OMX.MTK.AUDIO.DECODER.AMR.WB
MEDIA TYPE: AUDIO/AMR-WB
OMX.MTK.AUDIO.DECODER.ADPCM
MEDIA TYPE: AUDIO/X-ADPCM-MS
OMX.MTK.AUDIO.DECODER.ADPCM
MEDIA TYPE: AUDIO/X-ADPCM-DVI-IMA
OMX.MTK.AUDIO.DECODER.RAW
MEDIA TYPE: AUDIO/RAW
OMX.MTK.AUDIO.DECODER.AAC
MEDIA TYPE: AUDIO/MP4A-LATM
OMX.MTK.AUDIO.DECODER.G711
MEDIA TYPE: AUDIO/G711-ALAW
OMX.MTK.AUDIO.DECODER.G711
MEDIA TYPE: AUDIO/G711-MLAW
OMX.MTK.AUDIO.DECODER.VORBIS
MEDIA TYPE: AUDIO/VORBIS
OMX.MTK.AUDIO.DECODER.FLAC
MEDIA TYPE: AUDIO/FLAC
OMX.MTK.AUDIO.DECODER.APE
MEDIA TYPE: AUDIO/APE
OMX.MTK.VIDEO.DECODER.MPEG4
MEDIA TYPE: VIDEO/MP4V-ES
Color Formats: : 0x7f000001
Profiles: : Simple (0), Simple (0b), Simple (1), Simple (2), Simple (3), Simple (4), Simple (4a), Simple (5), AdvancedSimple (0), AdvancedSimple (0b), AdvancedSimple (1), AdvancedSimple (2), AdvancedSimple (3), AdvancedSimple (4), AdvancedSimple (4a), AdvancedSimple (5), Main (0), Main (0b), Main (1), Main (2), Main (3), Main (4)
OMX.MTK.VIDEO.DECODER.H263
MEDIA TYPE: VIDEO/3GPP
Color Formats: : 0x7f000001
Profiles: : Baseline (10), Baseline (20), Baseline (30), Baseline (40), Baseline (45), Baseline (50), Baseline (60), Baseline (70)
OMX.MTK.VIDEO.DECODER.AVC
MEDIA TYPE: VIDEO/AVC
Color Formats: : 0x7f000001
Profiles: : Baseline (1), Baseline (1b), Baseline (11), Baseline (12), Baseline (13), Baseline (2), Baseline (21), Baseline (22), Baseline (3), Baseline (31), Baseline (32), Baseline (4), Baseline (41), Baseline (42), Baseline (5), Baseline (51), Main (1), Main (1b), Main (11), Main (12), Main (13), Main (2), Main (21), Main (22), Main (3), Main (31), Main (32), Main (4), Main (41), Main (42), Main (5), Main (51), High (1), High (1b), High (11), High (12), High (13), High (2), High (21), High (22), High (3), High (31), High (32), High (4), High (41), High (42), High (5), High (51)
OMX.MTK.VIDEO.DECODER.VPX
MEDIA TYPE: VIDEO/X-VND.ON2.VP8
Color Formats: : YUV420Planar
OMX.MTK.VIDEO.DECODER.VC1
MEDIA TYPE: VIDEO/X-MS-WMV
Color Formats: : YUV420Planar
OMX.MTK.VIDEO.DECODER.DIVX
MEDIA TYPE: VIDEO/DIVX
Color Formats: : 0x7f000001
Profiles: : 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8, 0x8, 0x8, 0x8, 0x8, 0x8
OMX.MTK.VIDEO.DECODER.XVID
MEDIA TYPE: VIDEO/XVID
Color Formats: : 0x7f000001
Profiles: : 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8, 0x8, 0x8, 0x8, 0x8, 0x8
OMX.MTK.VIDEO.DECODER.S263
MEDIA TYPE: VIDEO/FLV1
Color Formats: : 0x7f000001
Profiles: : 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x1, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8000, 0x8, 0x8, 0x8, 0x8, 0x8, 0x8
OMX.GOOGLE.AAC.DECODER
MEDIA TYPE: AUDIO/MP4A-LATM
OMX.MTK.VIDEO.ENCODER.MPEG4
MEDIA TYPE: VIDEO/MP4V-ES
Color Formats: : 0x7f000200, Surface, 0x7f000200, YUV420Planar
Profiles: : Simple (0), Simple (0b), Simple (1), Simple (2), Simple (3)
OMX.MTK.VIDEO.ENCODER.H263
MEDIA TYPE: VIDEO/3GPP
Color Formats: : 0x7f000200, Surface, 0x7f000200, YUV420Planar
Profiles: : Baseline (10)
OMX.MTK.VIDEO.ENCODER.AVC
MEDIA TYPE: VIDEO/AVC
Color Formats: : 0x7f000200, Surface, 0x7f000200, YUV420Planar
Profiles: : Baseline (1), Baseline (1b), Baseline (11), Baseline (12), Baseline (13), Baseline (2), Baseline (21), Baseline (22), Baseline (3), Baseline (31), High (1), High (1b), High (11), High (12), High (13), High (2), High (21), High (22), High (3), High (31), High (32), High (4), High (41)
OMX.MTK.AUDIO.ENCODER.AMR
MEDIA TYPE: AUDIO/3GPP
OMX.MTK.AUDIO.ENCODER.AWB
MEDIA TYPE: AUDIO/AMR-WB
OMX.MTK.AUDIO.ENCODER.AAC
MEDIA TYPE: AUDIO/MP4A-LATM
OMX.MTK.AUDIO.ENCODER.VORBIS
MEDIA TYPE: AUDIO/VORBIS
OMX.MTK.AUDIO.ENCODER.ADPCM
MEDIA TYPE: AUDIO/X-ADPCM-MS
OMX.MTK.AUDIO.ENCODER.ADPCM
MEDIA TYPE: AUDIO/X-ADPCM-DVI-IMA
OMX.GOOGLE.FLAC.ENCODER
MEDIA TYPE: AUDIO/FLAC
AACENCODER
MEDIA TYPE: AUDIO/MP4A-LATM
OMX.GOOGLE.RAW.DECODER
MEDIA TYPE: AUDIO/RAW
FEATURES (28)
GRAPHICS
OpenGL 2.0
ANDROID HARDWARE
android.hardware.bluetooth
android.hardware.camera
android.hardware.camera.any
android.hardware.camera.autofocus
android.hardware.camera.flash
android.hardware.camera.front
android.hardware.faketouch
android.hardware.location
android.hardware.location.gps
android.hardware.location.network
android.hardware.microphone
android.hardware.screen.landscape
android.hardware.screen.portrait
android.hardware.sensor.accelerometer
android.hardware.sensor.light
android.hardware.sensor.proximity
android.hardware.telephony
android.hardware.telephony.gsm
android.hardware.touchscreen
android.hardware.touchscreen.multitouch
android.hardware.touchscreen.multitouch.distinct
android.hardware.touchscreen.multitouch.jazzhand
android.hardware.usb.accessory
android.hardware.wifi
android.hardware.wifi.direct
ANDROID SOFTWARE
android.software.live_wallpaper
GOOGLE
com.google.android.feature.GOOGLE_BUILD
OTHER APPS
Created with Hardware Info 3.0.2
